Iris camera system for ATMs and Kiosks

EyeTrust®II - Identity Verification for Biometric ATM Systems

Our most compact iris camera system brings together 21 years of innovation and expertise. EyeTrust®II is designed for easy retrofitting into existing infrastructures to deliver biometric ATM services in a range of environmental conditions.

EyeTrust®II is the first imager to host the unique IrisGuard auto-focus module, designed to provide unprecedented focusing precision coupled with our patented Fine Focus technology. The EyeTrust®II ensures extremely fast in-focus iris image capture in a variety of light conditions and temperatures.

EyeTrust® II

Specifications

Download full specification product brochure

Power and Data Interface: +5Vdc single USB cable
USB Standard: USB 2.0 (480Mbps) high speed
User Guidance Voice prompts: Dynamic multi-lingual 44.1Khz
Operator Status Indicator: Multi-coloured status bar
User Status Indicator: Multi-coloured status bar
Operating Temperature: 0°C - +60°C
Storage Temperature Range: -10°C - +70°C
Eye Safety: Lamp safety standard IEC 62471 – Exempt level
ISO Standards: Iris interchange Standard ISO 19794-6
Audio: 48K/44.1KHz sampling rate for playback/ Compliant with USB audio Class (UAC)
Interchange Standard Approvals: ISO/IEC 29794-6:2015 & ISO 19794-6:2011
Eye Safety Approvals: IEC62471 Classification

Suitable for indoor and outdoor use, tolerates a wide range of light conditions

Rapid dual iris capture using IrisGuard’s auto-focus technology
Face Capture - 2Mpixel (XVGA) face camera

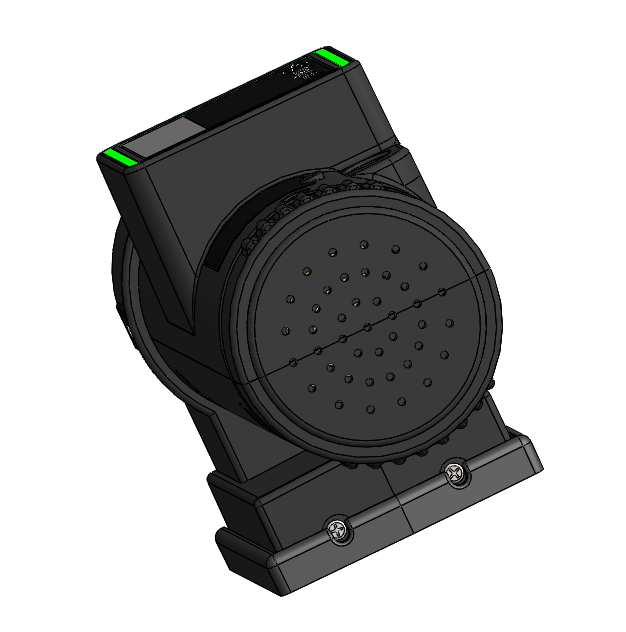

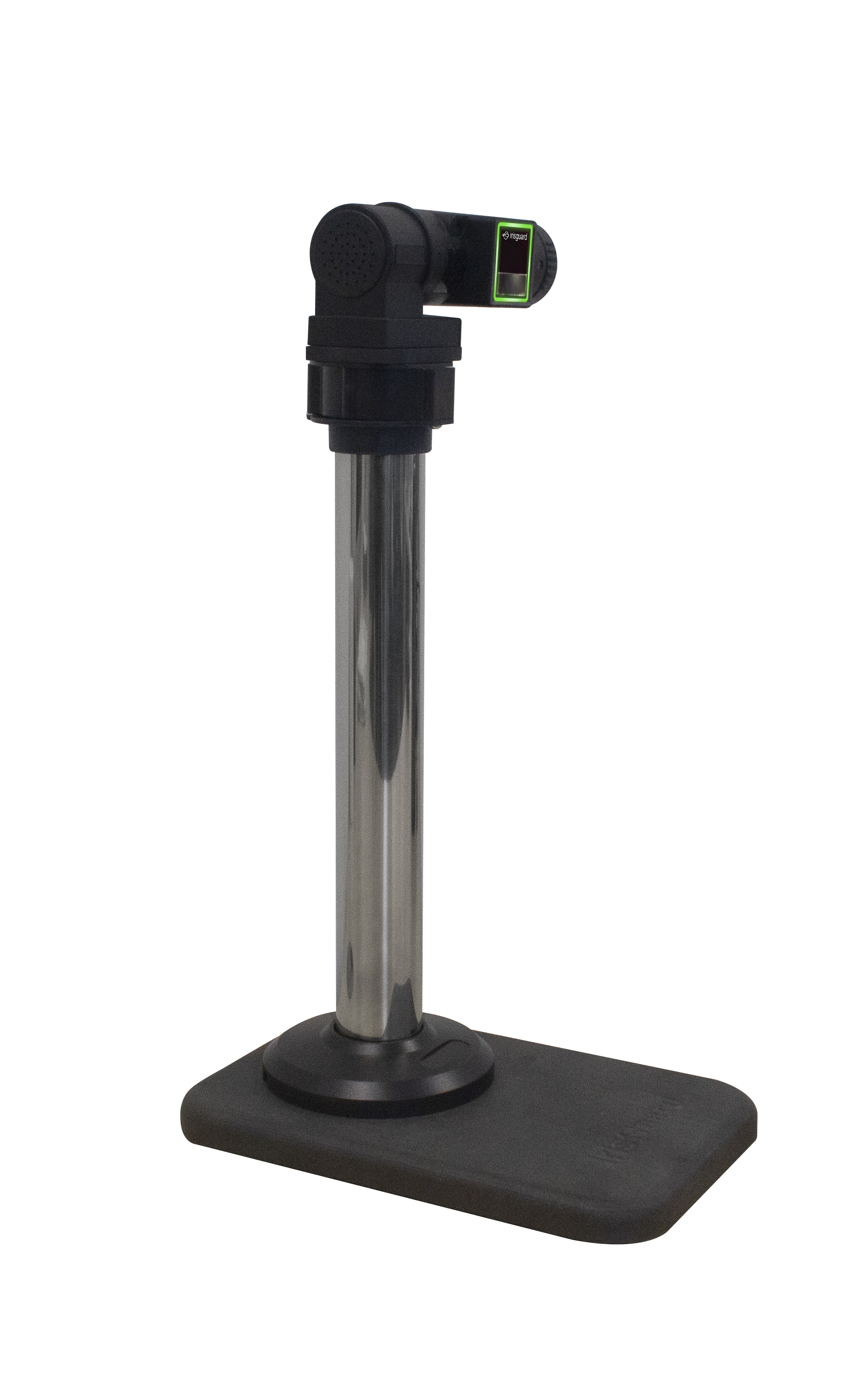

Extremely easy to install for indoor and outdoor use, with a built in mount

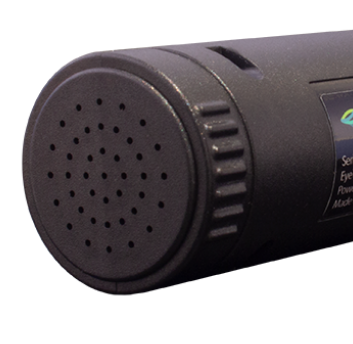

Audible and visual annunciation through a quality speaker is ideal for high footfall areas
Tethered (USB) and linked to the Cloud via a client, no external power supply required
Built-in industry-leading IrisGuard’s liveness detection countermeasures
Device-to-server encryption ensuring highest security standards
Hardware encryption chip to ensure privacy
Compatible with IrisGuard’s EyeBank®, EyeCloud® and the EyePay® Network systems

Approvals: CE & FC
Eye Safety: Lamp safety standard IEC 62471 – Exempt level
ISO Standards: Iris interchange Standard ISO 19794-6

The security of the iris camera system is protected by the cloud-based EyeCloud® Manager. This biometric ATM machine technology provides extensive variable parameters for the control of queries to the iris templates and the function and availability of the system in the field.

It is fully scalable to multi-million records, with client systems operating independently and capable of allowing federated support for third parties to take advantage of iris authentication under the control of the master client. This data access can also be customised, to only allow specific information to be passed through the system, or fully anonymised.

The EyeCloud® packets are protected with an end-to-end encryption scheme. The latest symmetric and asymmetric encryption algorithms are used to secure packets going to and from the EyeCloud® Host. Other security features that the API uses include but are not limited to: signatures, OTPs, T-OTPs and expiring templates.

No personal or biometric data/templates are stored on the device or biometric ATM machine
The iris camera system is protected by the latest industry-standard cryptographic algorithms
Built-in industry-leading IrisGuard countermeasures
Hardware encryption chip to ensure privacy

Get to know the EyeTrust® II
